SV130

ERV

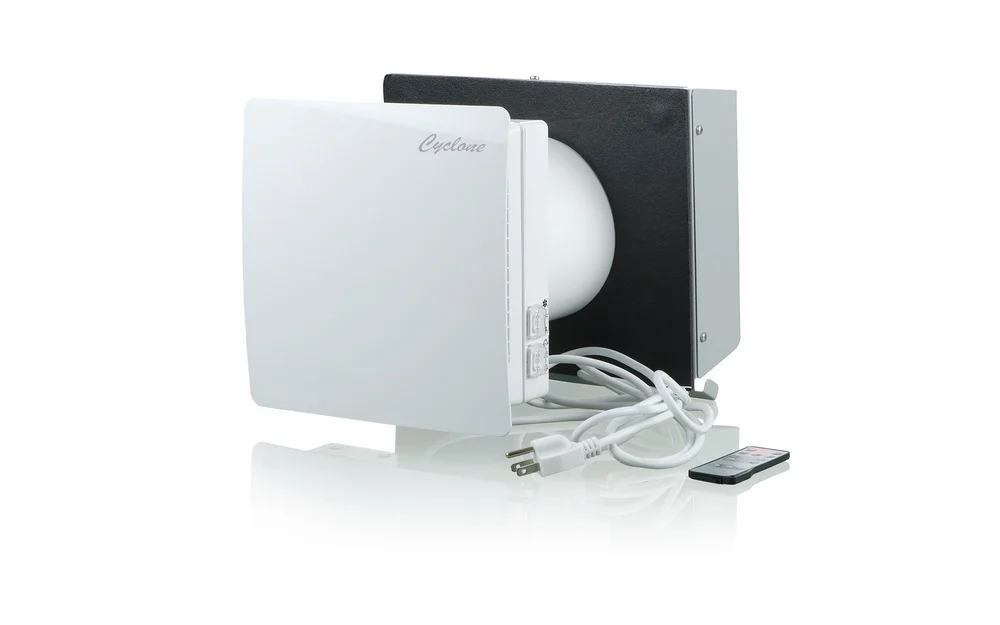

The completely ductless, through-the-wall, low-pro high-efficiency Energy Recovery Ventilator (ERV) SV130 is the most state-of-the-art solution for comfortable indoor climate. The high-tech ceramic energy accumulator with regeneration efficiency of up to 88% utilizes extracted air energy to temper supply air flow. The ceramic accumulator is treated with antibacterial composition to prevent bacteria growth inside the regenerator.

  • Specifications



    Speed 1 2 3
    Voltage   120 V / 60 Hz
    Power (W) 4.5 5.0 7.0
    Current (A) 0.045 0.049 0.076
    Air Capacity (CFM) 12/6 19/9 30/15
    RPM 610 800 1450
    Recovery Efficiency   Up to 88%
    Sones 0.2 0.4 0.5
    Ingress Protection Rating )IP)   24
    Operating Ambient Temperature (℃)    -20 to +50
    Max. Transported Air Temperature (℃)   -20 to +40
    Finish   White
  • Features

    • 2 x 70-sec cycles, alternating between exhausting indoor stale air and bringing in fresh air
    • High-tech ceramic core with sensible recovery efficiency up to 88%
    • Reversible axial DC motor with low energy demand
    • 4 ventilation modes and 3 speeds
    • Multifunctional wireless remote control
    • Silent operation
    • Easy mounting and maintenance
    • Two MERV 5 filters ensure air purification
    • Rated for continuous operation
    • No condensation generated during operation
    • Front grille with automatic shutters
    • Telescopic 6” duct (extends up to 18 1⁄2”)
    • Stainless steel outer hood
    • Recommended maximum duct run – 17’
    • Completely ductless, directly vents to exterior
  • Benefits

    • Bringing in fresh oxygen-rich air without increasing your heating or cooling bill
    • Maintains optimum air quality in your home
    • Ideal for apartments, hotels, cottages, cafes and long-term facilities
    • Maintains a comfortable humidity level
    • Brings in fresh tempered air during winter when it may not be comfortable to open the window due to the cold
    • Antibacterial treatment of ERV core and filters, and no defrost mechanism required
    • Optimized for rooms up to 500 square feet
    • Easy and convenient through the exterior wall mounting
